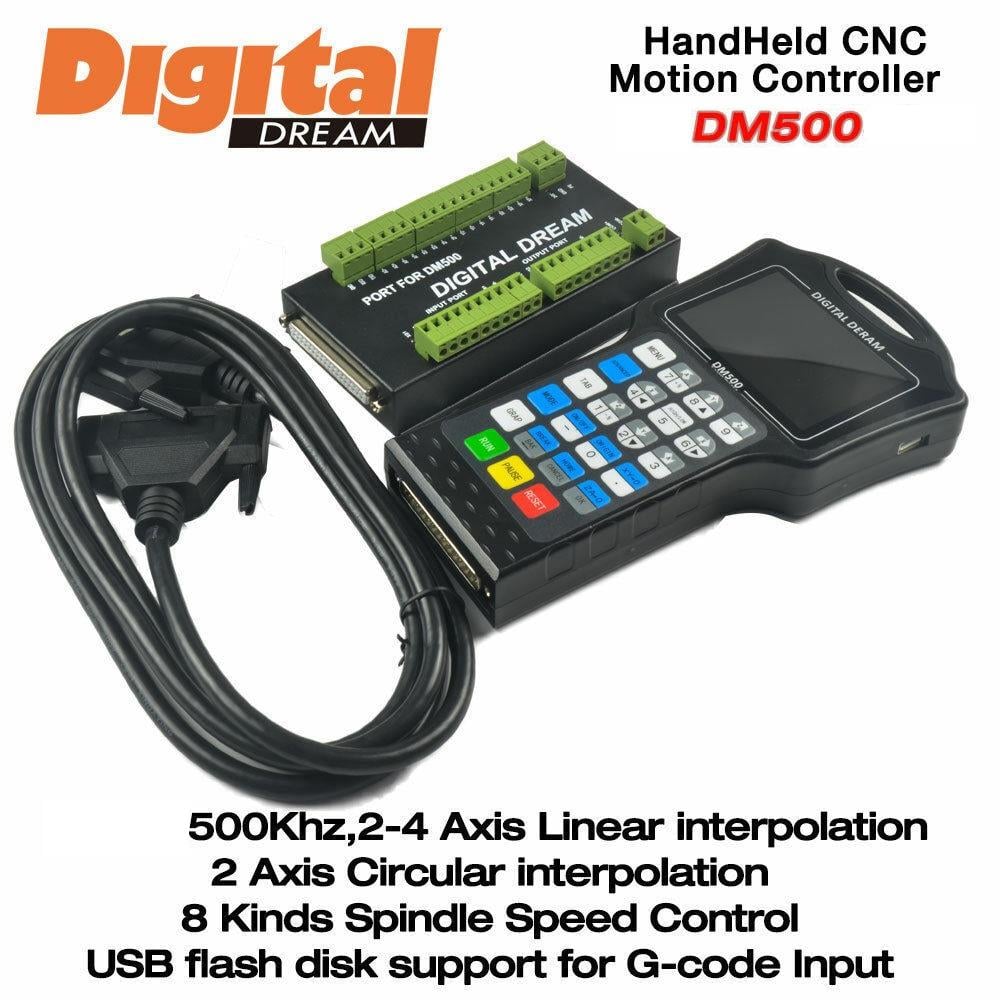

DM500 3 Eksen Cnc Kontrol Terminali (DM500)

 Manual       Install for DM500 (20200218)

• 2 Axis linear interpolation, any 2-axis circular interpolation;
• 7 optoisolated digital outputs, 8 optoisolated digital inputs;
• Support every Input and output port definition by users;
• The controller needs 2 power supplies, one power supply is for system power; one is for input and output port power. Both input power is 24V, 2A;<
• Open-collector output, Max. The output current is 500mA, which can power the relay directly;
• Differential Pulse and direction output signal, Max. 500 kHz per axis;
• Spindle Control: 3 I/O ports control 8 different speeds (3 lines 8 speeds),1 I/O control the Start/Stop;
• Support standard G-code. Also Support the popular CAD/CAM software, such as ArtCam, MasterCam, ProE, and so on;
• USB flash disk supports G code file input;
• The control system can preview the process path before machining, and it makes the system more steady, working smoothly and precise;
• Acceleration/Deceleration Mode: S curve;
• Support unlimited size files for machining;
• Manual/Automatic machining function;
• Support the operation to start a G code from a specific line;
• Support for “Power Cut” ± recovery. Data is automatically saved;
• Support time-lock function;
• Support 4 kinds of operation rights: visitor, operator, admin, and super admin.
