RichAuto A11 3 Eksen Cnc Kontrol Terminali (DSP-A11)

İndirim Oranı : %50 İndirim

KDV Dahil : 1,200.00 $

İndirimli : 500.00 $ + KDV

KDV Dahil : 21.000,00 TL

Orjinal RichAuto Marka A11 Modeli.

3 Eksen Cnc Router Makinenizi Kolayca Kontrol Edebilirsiniz..

Step ve Servo Motorlarla Uyumludur.

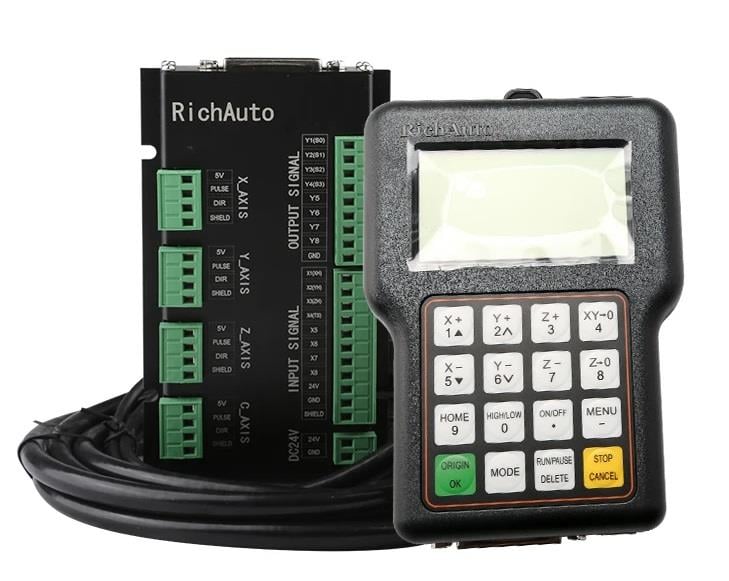

Takım içinde Dsp Panel, Kontrol Kartı, Kablo bulunmaktadır.

Cnc yi Kontrol etmek için tek başına yeterlidir. Bilgisayara gerek yoktur.

Artır Azalt

Tavsiye Et

Yorum Yaz

TEKNİK DÖKÜMAN

Product Feature

New three-axis linkage motion mode to achieve comprehensive controlling
Support XYZ axis driver and spindle error alarm function
Large storage space, perfect U disk compatibility, fast reading speed, safe and reliable U disk-processing.
Support intelligent file checking function.
Parameter backup and restore function to prevent the loss of important parameters.
High anti-jamming intensity passes many CE tests.
Intelligent processing memory, supports power fail safeguard and breakpoint function.
Definable I/O interfaces provide customers a wide range of development platforms.

Product Parameters

Product Model	RichAuto----A11
CPU	DSP
Internal Memory	512Mb
Display Screen	128*64 Monochrome LCD
Communication Port	U disk、USB cable
Controlled Axis Number	3 axis
Control Signal	differential signal
Drive System	step motor/servo motor
Minimum Input Unit	0.001mm
No Volt Protection	Support
Breakpoint Processing Function	Support
External Power Supply Voltage	24V DC
Manual Mode	Continuous、point move、distance
Interpolation Method	line、arc、curve
Soft/Hard Limit	support
Maximum Pulse Frequency	1M/S
Password Protection	support
Support Language	simple Chinese/traditional Chinese、English、other languages
Standard Configuration	(1) DSP Handle；(1) 50 core cable (1)USB cable； (1)8 I/O Wiring board;(1) data CD
