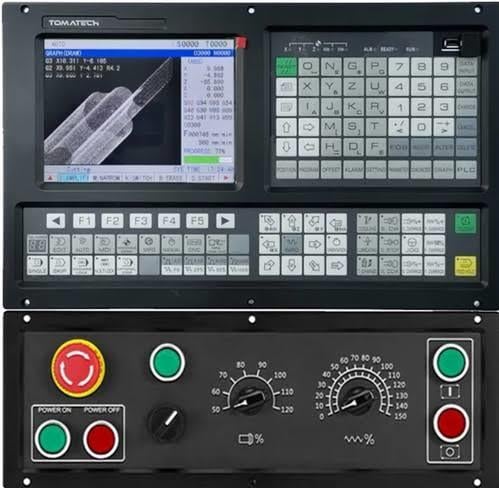

Display interface:
● 8.0 inch wide-screen LCD, 800×480 lattice
● Chinese, English language display
● 2D tool path displays.
● Real-time clock
Operation mode:
● Operation modes: edit, automatic, input, machine tool reset, handwheel/single-step, manual, DNC.
● Multiple operateauthority management.
● Alarm logging
Program edit:
● Program volumn: 56MB, it can store 400 programmings mostly (includes sub-programming, Marco programming)
● Edit function: Programming/programming segment/word retrieval, amend, delete, copy, and stick
● Programming format: ISO code,supports statement macro program, supports relative coordinate, absolute
coordinate and polar coordinate.
● Programming calls: supports maco with parameters calls, level 4 subprogram nesting.
Communication function:
● RS232: parts program, parameters and some documentation two-way transmission, supports PLC program, system
software serial ports update.
● USB: U disk documentation operatiom, U disk processing directly, Support PLC program, system software U disk
update.
● Support serial port DNC processing function and USB online processing function, reliability and safty
Relability and safty function
● Emergency stop
● Handware route limit
● Software routet inspect
● Data backups and Data recover.
